Description
FOR PROS & PROS AT HOME

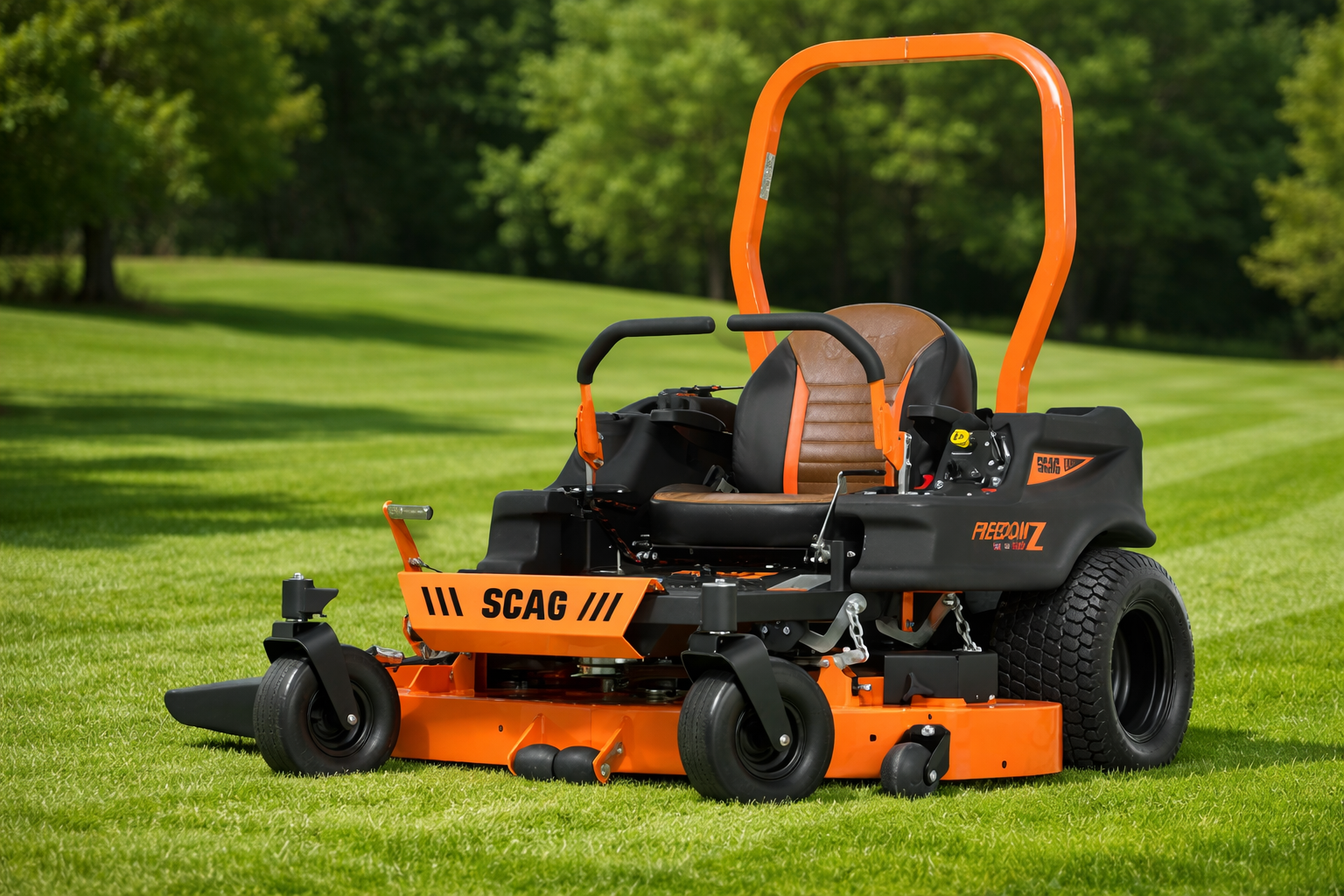

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
Command perfection
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
Hydro-Gear ZT-2800 Transaxles
SPEEDS UP TO 8 MPH
The ZT drive system’s dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
Low-Maintenance Mower Design
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
Easy Foot-Pedal Deck Lift
EASY UP, EASY DOWN
This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
Easy Foot-Pedal Deck Lift
EASY UP, EASY DOWN
Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
Specs
- Total Fuel Capacity
6.5 gallons - Drive Tires
20″ x 10″-10″ - Caster Tires
11″ x 6″-5″ - Seat
Padded with arm rests, adjustment forward and back (tools required) - Drive System Type
Hydro-Gear ZT2800 Transaxle - Pumps
Internal Pump: 10 cc - Motors
Internal Motor: 16 cc - Forward Ground Speed
8 mph - Reverse Ground Speed
5 mph - Parking Brake
Hand-activated lever
- Cutting Widths
48″ and 52″ -
Type
Hero Cutter Deck - Cutting Height
1.5″ to 4.5″ in .25″ increments - Deck Lift
Foot-operated pedal - Construction
Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. - Spindles
Aluminum housing with sealed ball bearings. - Blade Engagement
Ogura GT1 (74 ft lb)
Adjustable air-gap for extended life.
