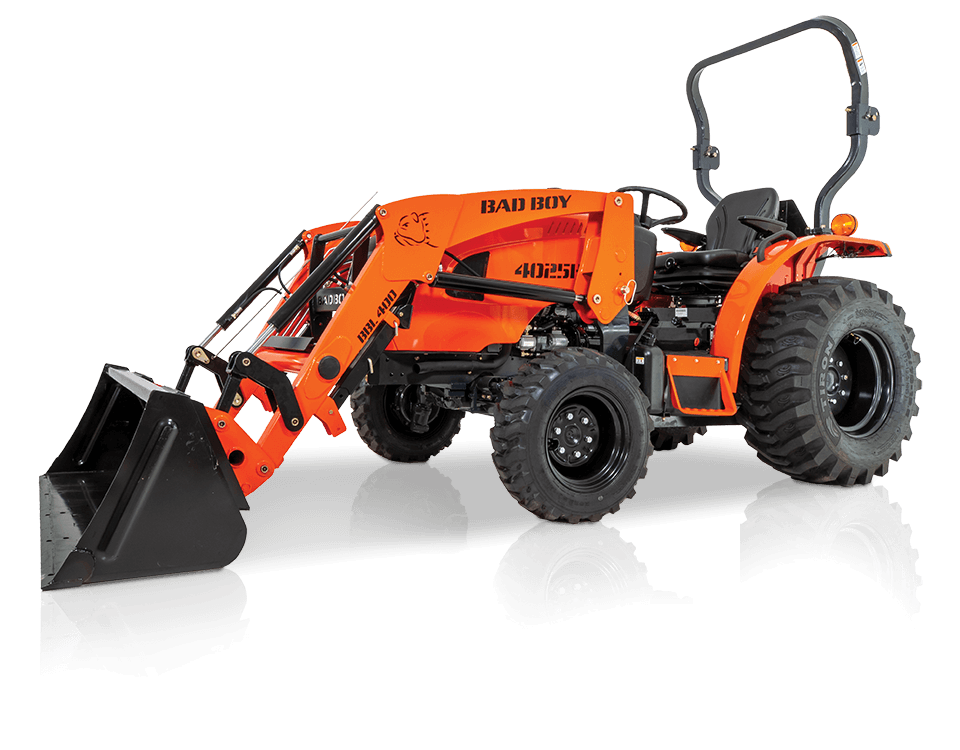

4025 Bad Boy Tractor With Loader BB4025HIL 25HP 3 Cylinder Diesel

4025 Compact Tractor – Specifications & Performance Overview

The 4025 Compact Tractor is engineered to deliver dependable power, smooth operation, and exceptional versatility for property owners, landscapers, and light agricultural applications. Built with a fuel-efficient diesel engine and a robust hydraulic system, the 4025 is designed to handle demanding tasks with ease while remaining easy to operate.

Engine & Power

At the heart of the 4025 is a 25 HP, 3-cylinder, water-cooled diesel engine producing reliable torque and long-term durability. With 104.5 cubic inches of displacement and a 7.1-gallon fuel tank, this tractor is well-suited for extended workdays without frequent refueling.

Drivetrain & Handling

The hydrostatic transmission (HST) with a 3-range speed system allows smooth, clutch-free operation, making the 4025 ideal for both experienced operators and first-time tractor owners. Wet, multi-disc brakes provide confident stopping power in all conditions.

Hydraulics & 3-Point Hitch

A hydrostatic power steering system combined with 11.5 GPM total hydraulic flow (4 GPM steering / 7.5 GPM implement) ensures responsive control and strong implement performance. The Category 1 three-point hitch offers a lift capacity of 2,425 lbs at 24 inches, with optional rear remote valves (up to two) for added versatility.

PTO Performance

The independent rear PTO delivers 19.1 PTO horsepower at 540 RPM, providing consistent power for mowers, tillers, and other PTO-driven attachments.

Dimensions & Stability

With an overall length of 134.88 inches, width of 56.7 inches, and a wheelbase of 65.7 inches, the 4025 balances maneuverability with stability. A 13.1-inch ground clearance and an operating weight of 2,970 lbs make it capable across varied terrain.

Electrical System

The tractor features a 12-volt electrical system with a 540 CCA battery and a 50-amp alternator, ensuring reliable starts and consistent power for accessories.

Wheels & Tires

Industrial-grade tires (25×8.50-14 front / 15-19.5 rear) provide excellent traction and durability on hard surfaces, gravel, and mixed terrain.

Front Loader – Model BBL400

The optional BBL400 front loader adds serious material-handling capability:

• 62″ standard bucket

• 104″ maximum lift height

• 2,200 lbs lift capacity at pivot pin

• 3,660 lbs breakout force

• 1.8″ dig depth

• 1,007 lbs shipping weight
