Description
COME HOME TO THE BEST

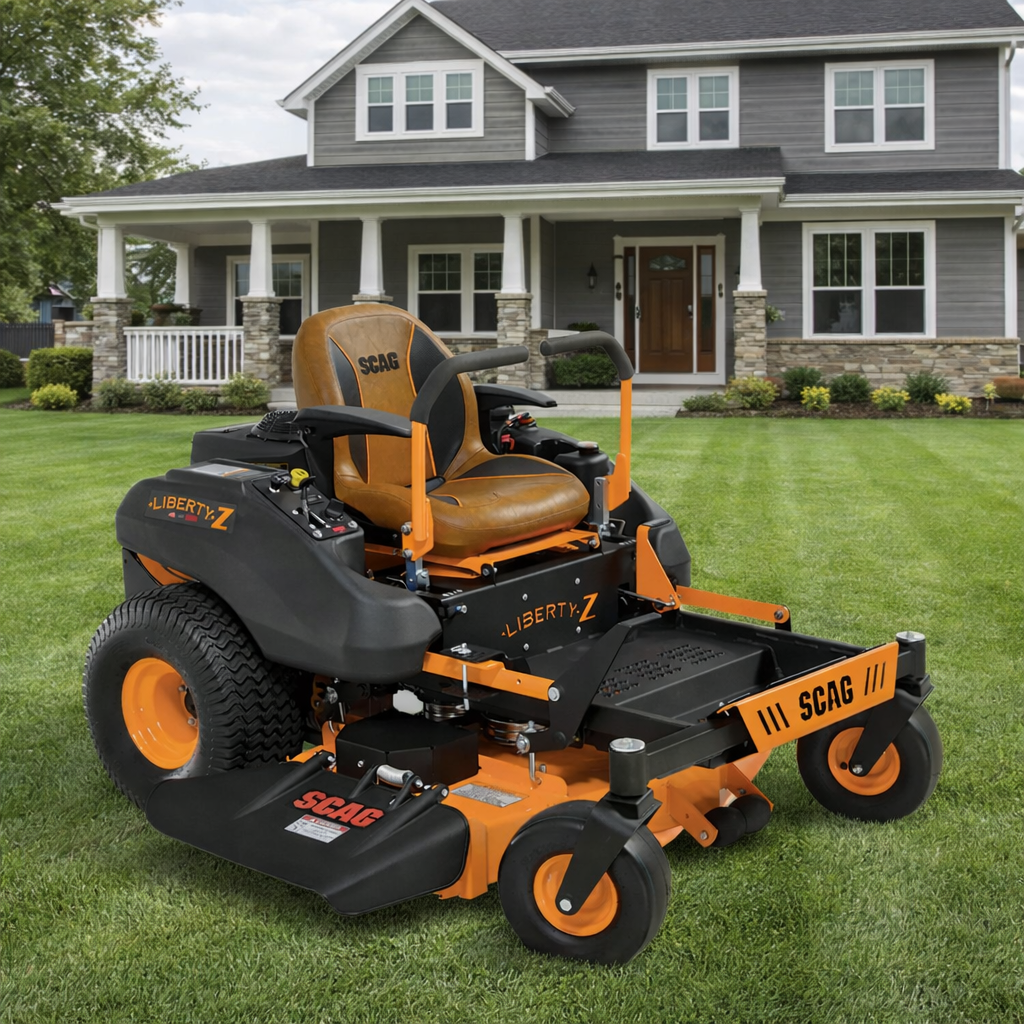

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
Command perfection
DEEP, FABRICATED, AND WELDED CUTTER DECKS
Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
High-Strength Steel Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Tubular-steel main frame delivers unmatched strength and longevity.
Low-Maintenance Mower Design
MORE UPTIME
Fewer grease points increase operator convenience and ease-of-ownership.
Proven Transaxles
SPEEDS UP TO 7 MPH
The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36″, 42″, 52″ and 61″ models). The 48″ model features proven Tuff Torq transaxles.
Contoured, Bolstered, High-Back Seat
RIDE IN COMFORT
This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
Easy Foot-Pedal Deck Lift
EASY UP, EASY DOWN
Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
-
Total Fuel Capacity
3.5 gallons (36″ and 42″)
5.5 gallons (48″, 52″ and 61″) - Drive Tires
20″ x 8″-10″ (36″)
20″ x 10″-8″ (42″, 48″ and 52″)
20″ x 10″-10″ (61″) - Caster Tires
11″ x 4″-5″ (36″ and 42″)
11″ x 6″-5″ (48″, 52″ and 61″) - Seat
Padded with arm rests, adjustment forward and back (tools required)
(no armrests on 36″ and 42″ models) - Drive System Type
Hydro-Gear ZT2800 Transaxle (36″, 42″ and 52″)
Tuff Torq TZ450 Transaxle (48″)
Hydro-Gear ZT3100 Transaxle (61″) - Pumps
Internal Pump: 10 cc - Motors
Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear) - Forward Ground Speed
7 mph
- Reverse Ground Speed
5 mph - Parking Brake
Hand lever - Cutting Widths
36″, 42″, 48″, 52″ and 61″ - Type
Heavy-Duty Hero Cutter Deck - Cutting Height
1.5″ to 4.5″ in .25″ increments - Deck Lift
Foot-operated pedal - Construction
Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. - Spindles
Aluminum housing with sealed ball bearings. - Blade Engagement
Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″)
Ogura GT2 (108 ft lb) – (61″)
Adjustable air-gap for extended life.
